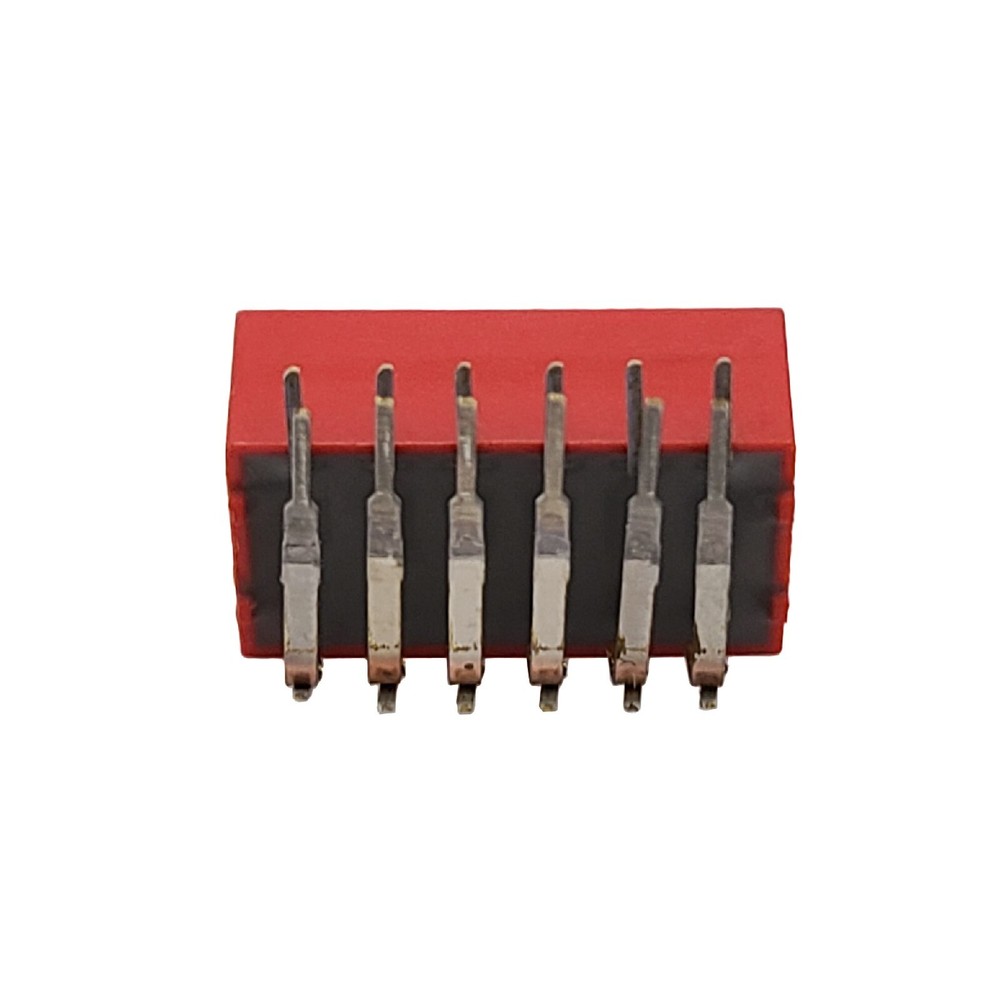

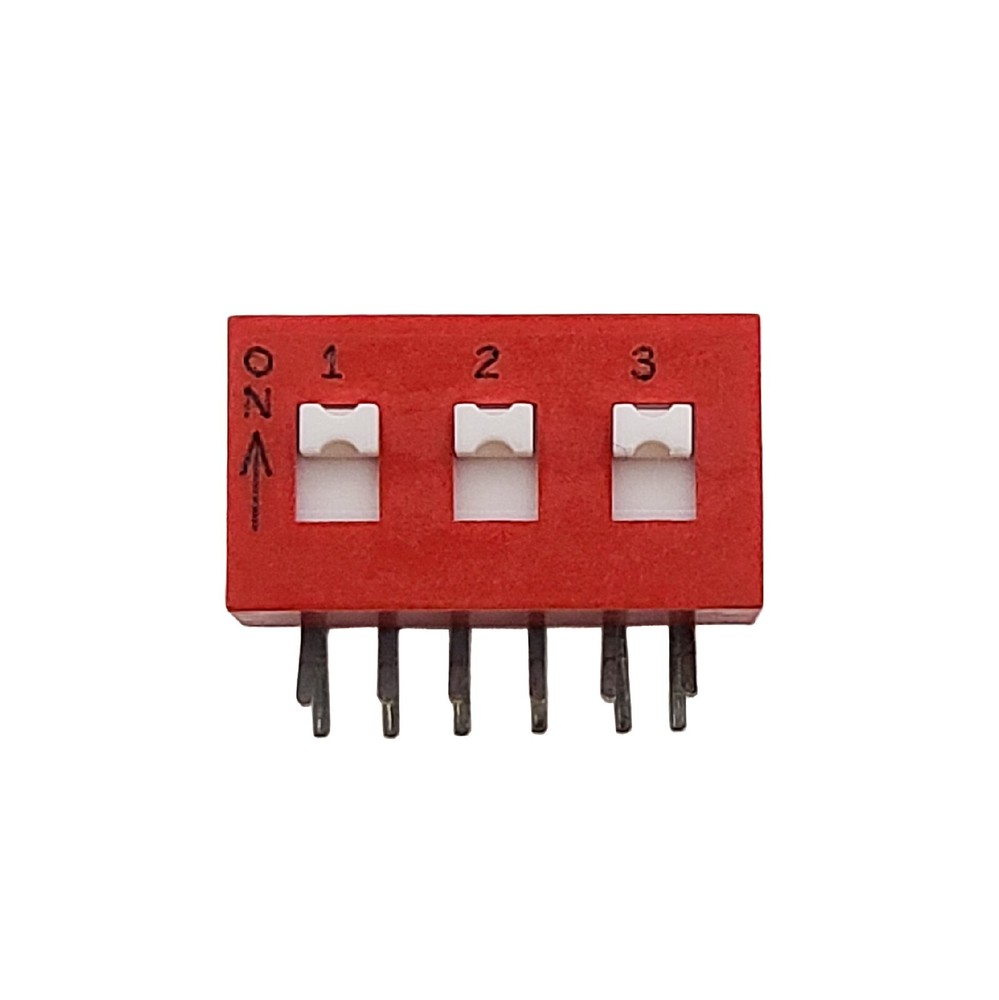

Name: 3-Pos Right Angle DIP Switch DPST 12-Pin Grayhill
Brand: Grayhill
SKU: 708164536430
Price: 3.15 USD
Availability: InStock
Rating: 3.965 (811 reviews)

Description

Dip Switch DPST 3 Position Through Hole, Right Angle Slide Switch Manufacturer: Grayhill Inc. Series: 78 Circuit: DPST Number of Positions: 3 Current Rating (Amps): 150mA Voltage Rating: 30VDC Actuator Type: Slide (Standard) Actuator Level: Raised Contact Material: Copper Alloy Contact Finish: Gold Height Above Board: 0.315" (8.00mm) Mounting Type: Through Hole Termination Style: PC Pin Pitch: 0.100" (2.54mm) Operating Temperature: -40°C ~ 85°C Body Material: Thermoplastic Length: 0.680" (17.27mm)

Specifics

Application	Electrical Wiring, Electronics, Home Appliance, Industrial, Instruments, Large Appliances, Light Control, Small Appliances, Telecommunications, Voltage Conversion
Brand	Grayhill
Coil Voltage	30 VDC
Color	Red
Contact Configuration	Double Pole Single Throw (DPST)
Current Rating	150 mA
Current Type	DC
Finish	Copper Alloy
Fuse Type	Switch
Item Height	6.30 mm (1/4" in)
Item Length	17.60 mm (0.7" in)
Item Width	9.6 mm (0.38" in)
MPN	78F03S
Material	Thermoplastic
Model	Right Angle Dip Switch
Mounting Style	Panel, Surface
Number in Pack	5
Number of Positions	2
Operation Method	On/Off
Orientation	Vertical
Switch Style	Slide
Termination Type	PC Pin
Type	Slide DIP Switch
UPC	Does not apply
gtin13	Does not apply

Reviews

Rated 3 out of 5

jorge vizcarra

This DIP switch is solid and reliable—perfect for precise circuit control. The right-angle design saves space, and the gold-plated contacts ensure great conductivity. Easy to install and durable, it's a great choice for any project needing a compact, high-quality switch. Highly recommended!
