Description

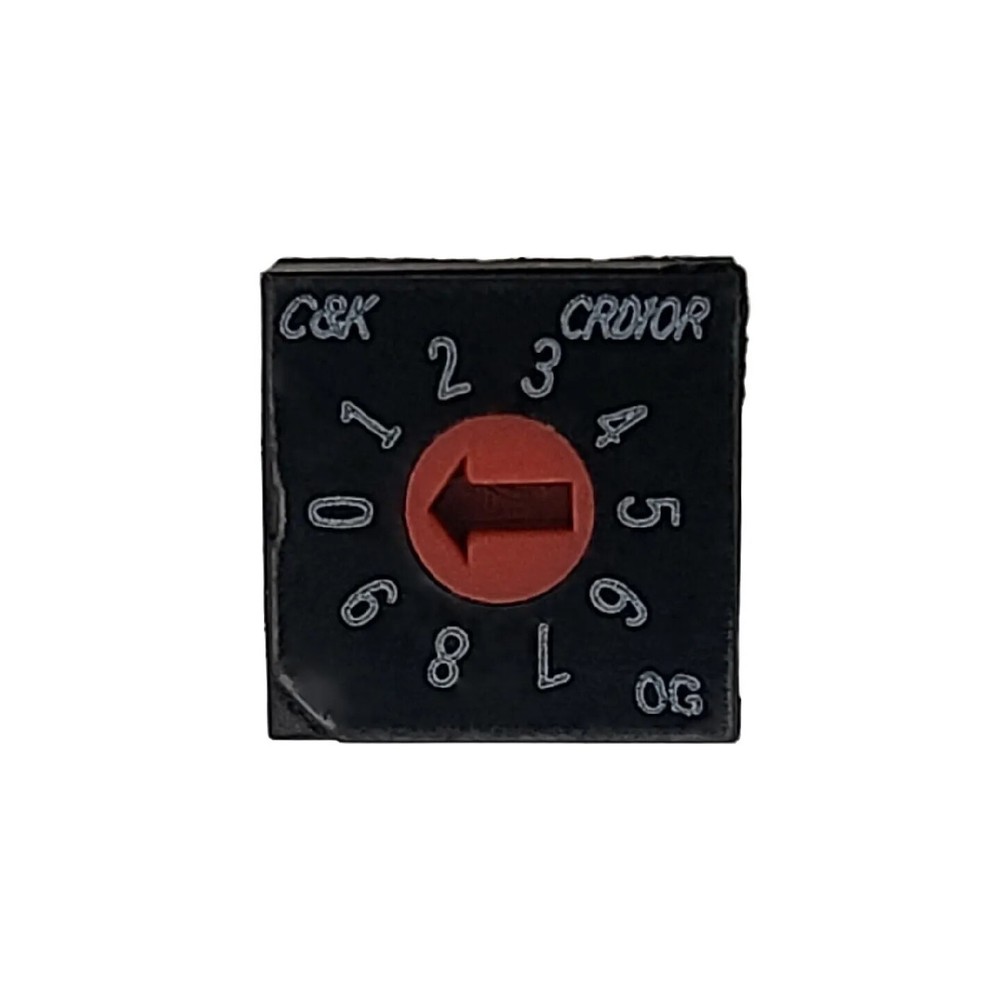

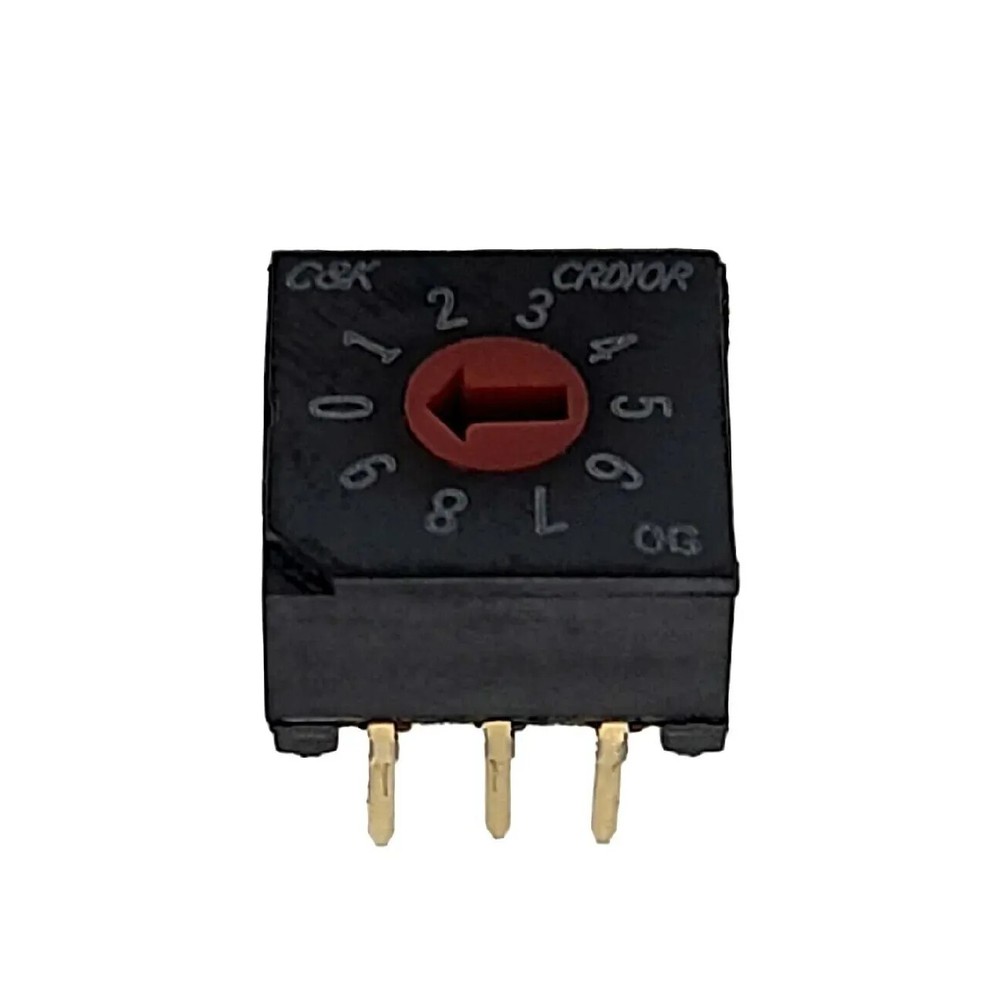

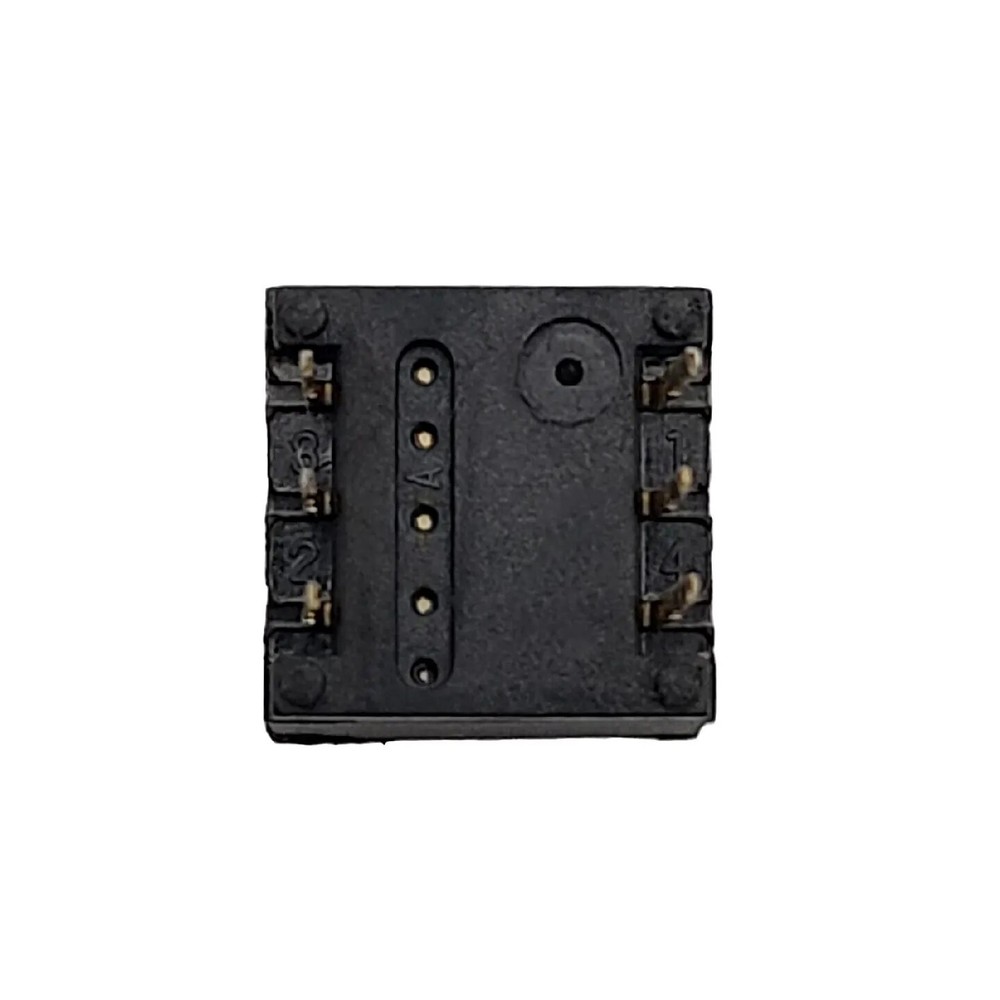

The CRD series rotary switch, manufactured by C&K Components, is a versatile component designed for various applications. It features a BCD circuit and offers 10 different positions, providing flexibility in selecting desired settings. With a current rating of 0.4VA, this rotary switch can handle moderate power demands. The voltage rating of 20VAC/DC ensures compatibility with a wide range of electrical systems. The switch is equipped with a rotary actuator specifically designed for tool operation. It offers two actuator levels: flush and recessed, allowing for different actuation preferences based on user requirements. The contact material is made of beryllium copper, ensuring reliable electrical conductivity, while the gold finish provides enhanced durability and corrosion resistance. Measuring 0.256" (6.50mm) in height above the board, the switch is suitable for through-hole mounting, ensuring secure and stable placement. The termination style is PC pin, which facilitates easy and reliable connection. The pitch of 0.100" (2.54mm) with a full configuration enables efficient integration with other components. The CRD series rotary switch is washable, making it suitable for applications where cleanliness and maintenance are important. It is also process sealed, ensuring protection against environmental contaminants and promoting long-term reliability. Operating within a temperature range of -20°C to 85°C, this switch is suitable for use in a variety of environments. Constructed with a body made of polyphenylene sulfide (PPS), the switch exhibits excellent mechanical strength and resistance to high temperatures. Its length measures 0.394" (10.00mm), making it compact and space-efficient. With a mechanical life of 30,000 steps and an electrical life of 20,000 steps, the CRD series rotary switch offers reliable performance over an extended period. Whether used in industrial equipment, consumer electronics, or other applications, this switch provides a durable and dependable solution for rotary switching needs.
